QY-MB-J4125-6C-002

QY-J4125-6C-002 mother board is designed for rugged industrial applications, this modular motherboard integrates the ‌Intel Celeron J4125 processor‌ to deliver energy-efficient computing power for edge automation and IoT gateways‌. Its ‌fanless thermal design‌ ensures silent operation and minimizes mechanical failure risks in harsh environments‌. QY-J4125-6C-002 has ‌4× USB 3.0‌ and ‌4× USB 2.0‌ ports for seamless peripheral integration‌.‌ Triple Display Support‌: LVDS/eDP, eDP, HDMI, and enable multi-monitor configurations for HMI and control panels‌. ‌2*Mini-PCIe Slots‌,1*MSATA and ‌1*SATA for expandable storage and industrial module compatibility.

PRODUCTS FEATURES

CPU Intel Celeron J4125

Interfaces 2*LAN,8*USB,6*COM

Display Ports 1*HDMI,1*LVDS/eDP,1*eDP

RAM 1*DDR IIII RAM Slot, Up to 8G

Expansion Slot 2 * Mini-PCIe slots,support WIFI and 4G/BT

Get a Quote Download PDF

Mobile/WeChat/WhatsApp: +86 13792865942

Introduce

Features

Specification

Marking Instruction

Introduce:

QY-J4125-V12-6COM

1.Intel Celeron J4125 CPU
2.4*USB 3.0,4*USB 2.0
3.1*HDMI,1*LVDS/eDP,1*eDP display ports(Support three display mode)
4.1*SATA,1*MSATA
5.2*Mini-PCIe slots
6.Support Windows 10/11 and Linux system

Features:

CPU

Intel Celeron J4125

I/O Interface

2*LAN,4*USB 3.0,4*USB 2.0 4 * RS232 (Header) 1 * RS232/RS485/RS422 (Header) 1 * RS232/RS485 (Header)

Display Ports

1*HDMI,1*LVDS/eDP,1*eDP display ports (Support three display mode)

RAM and SSD

1*DDR IIII RAM Slot, Up to 8G 1*SATA,1*MSATA

Expansion Slot

2 * Mini-PCIe slots,support WIFI and 4G/BT

Working Temperature

-20~60℃

Power Supply

DC 9-36V

Factor

196mm * 115mm

Specification:

Model	QY-MB-J4125-6C-002
CPU	Intel Celeron J4125, up to 2.70G, Duad-core
Display	Support triple display simultaneously： 1* HDMI: resolution up to 2560* 1440@60Hz 1 * LVDS/eDP: LVDS, resolution up to 1920 * 1080@60Hz 1 * eDP: resolution up to 1920 * 1200@60Hz
Memory	DDR4-2400,1 * SO-DIMM, up to 8GB *Note:Due to the limitation of Windows 32-bit operating system, if more than 4 GB of memory is installed, it is actually.The memory capacity displayed on will be less than 4 GB.
Storage	1 * SATA3.0 7P Connector 1 * Mini-SATA
Expansion Interface	2 * Mini-PCIe ( Wifi supported with 4G/BT selectable)
Ethernet	2 * Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Audio	Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * MIC 1 * Line-Out 1 * SPK
COM	4 * RS232 Header 1 * RS232/RS485/RS422 Header 1 * RS232/RS485 Header
USB	4 * USB3.0 (Rear I/O, TYPE-A) 4 * USB2.0 (Internal, Header)
Other Ports	1 * LPT Header 1 * Micro SIM Card Slot 1 * CPU FAN Header 1 * Front Panel Header 1 * GPIO Header 1 * CMOS Clear Jumper
System	Windows 10/11, Linux
Temperature	Storage: -30~75℃ Operating: -20° ~60℃
BIOS	AMI UEFI BIOS
Power Input	DC 9-36V
Factor	196mm * 115mm

Marking Instruction:

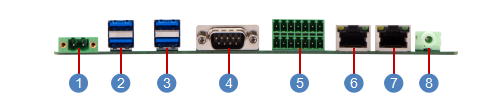

1	DC12V Power Input Connector	21	M-SATA Connector
2	USB3.0 Connectors	22	COM2 Select Jumper
3	USB3.0 Connectors	23	Parallel Port Pin Header
4	COM1 Connectors	24	eDP Signal Pin Header
5	COM2-6 Pin Headers	25	eDP/LVDS Backlight Control Pin Header
6	LAN Connectors	26	LVDS Signal Pin Header
7	LAN Connectors	27	eDP/LVDS VDD Select Jumper
8	Line-out Connector	28	GPIO Pin Header
9	MIC Pin Header	29	SATA 3.0 Connector
10	HDMI Pin Header	30	SATA Power Pin Header
11	Amplifier Pin Header	31	USB Pin Headers
12	COM1 Select Jumper	32	USB Pin Headers
13	COM2 Pin Headers	33	Front Panel Pin Header
14	SIM Card Slot	34	CMOS battery Holder
15	COM3 Pin Headers	35	DDR4 SO-DIMM Slot
16	Mini PCI-WIFI Slot (WIFI/BT)	36	buzzer
17	COM4 Pin Headers	29	SATA 3.0 Connector
18	Mini PCI-4G_CAN Slot (WIFI/4G/BT)	30	SATA Power Pin Header
19	COM3-6 Pin Headers	31	USB Pin Headers
20	COM1 PWR Select Jumper	32	USB Pin Headers
29	SATA 3.0 Connector	33	Front Panel Pin Header
30	SATA Power Pin Header	34	CMOS battery Holder
31	USB Pin Headers	35	DDR4 SO-DIMM Slot
32	USB Pin Headers	36	buzzer
33	Front Panel Pin Header	37	eDP/LVDS Signal Select Jumpers
34	CMOS battery Holder	38	COM2 Mode RS232/485 jumper
35	DDR4 SO-DIMM Slot	39	COM2 RS232/485 jumper
36	buzzer

Recommend:

P8000 Series

P5000 Series

Fanless Mini Pc
