QY-MB-10610U-002

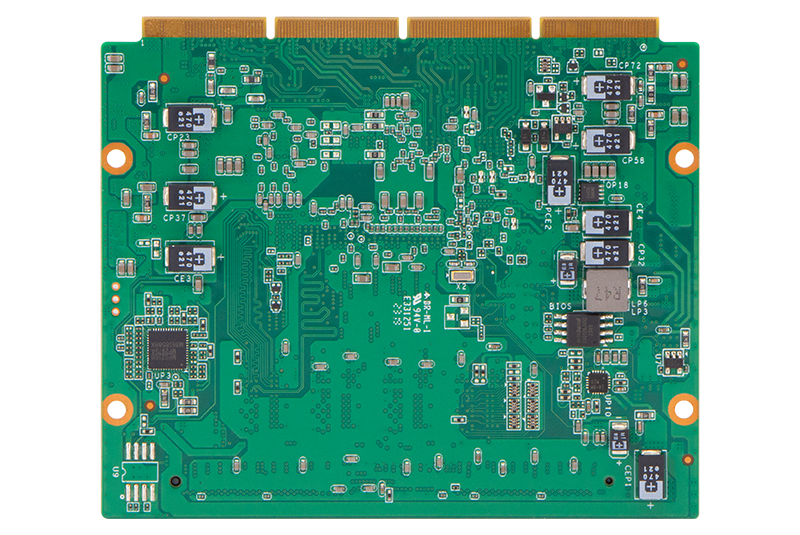

QY-MB-106110U-002 core board is designed for rugged industrial applications, this modular motherboard integrates the Intel Core i3/i5/i7-10th processors to deliver energy-efficient computing power for edge automation and IoT gateways. Its fanless thermal design ensures silent operation and minimizes mechanical failure risks in harsh environments.
QY-MB-10610U-002 has 4× USB 3.0 and 10× USB 2.0 ports for seamless peripheral integration.
Triple Display Support: eDP, HDMI, and VGA interfaces enable multi-monitor configurations for HMI and control panels.
4× PCIe x1 Slots and 3× SATA for expandable storage and industrial module compatibility.
PRODUCTS FEATURES
CPU
i3-10110U,i5-10210U/10310U,i7-10610U/10710U
Interfaces
14*USB,3*SATA
Display Ports
1*HDMI,1*VGA,1*eDP
RAM
1*DDR IIII RAM Slot, Up to 32G
Expansion Slot
4*PCIE 1x slots
Introduce
Features
Specification
Marking Instruction
Introduce:
QY-MB-10610U-002
1.Intel Core i3-10110U,i5-10210U/10310U,i7-10610U/10710U CPU
2.4*USB 3.0,10*USB 2.0
3.1*HDMI,1*VGA,1*eDP display ports(Support three display mode)
4.3*SATA
5.4*PCIE 1x slots
6.Support Windows 10/11 and Linux system
2.4*USB 3.0,10*USB 2.0
3.1*HDMI,1*VGA,1*eDP display ports(Support three display mode)
4.3*SATA
5.4*PCIE 1x slots
6.Support Windows 10/11 and Linux system
