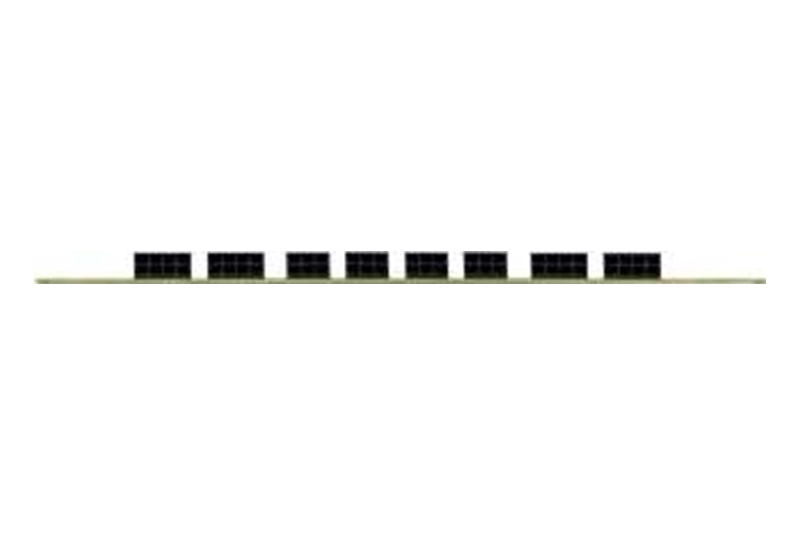

QY-MB-003-S

QY-MB-003-S industrial bottom board is designed for water proof automation and rugged environments, this industrial-grade backplane integrates high-performance connectivity and modular expandability to support diverse Industry 4.0 applications‌. QY-MB-003-S has 6*COM ports for seamless integration with PLCs, sensors, and legacy industrial devices‌. 2*Gigabit LAN ports‌ and 8*USB ports ensure stable data transmission. DC 12V power input‌ ensures compatibility with industrial power systems and uninterrupted operation. Operates at ‌-20°C to +60°C‌ with anti-vibration design and EMI shielding for harsh environments.

PRODUCTS FEATURES

Model Name QY-MB-003-S

Interfaces: 2*LAN,7*USB,6*COM

Display Ports 1*VGA,1*LVDS/eDP

Storage 1*MSATA,1*SATA

Expansion Slot 1*Mini PCIE Slot, Support WIFI or 4G/BT,1*M.2 Slot,Support 5G

Get a Quote Download PDF

Mobile/WeChat/WhatsApp: +86 13792865942

Introduce

Features

Specification

Marking Instruction

Introduce:

QY-MB-003-S

1.. 2*RJ-45,7*USB 2.0
4*RS-232/ 485+2*RS-232 (Header)
2. 1*VGA,1*LVDS/eDP display ports
3.1*SATA,1*MSATA
4. 1*Mini PCIe slot,support WIFI or 4G/BT,1*M.2 Slot,support 5G
5. DC 12V

Features:

Storage

1*SATA 1*MSATA

I/O Interface

2*RJ-45,7*USB,6*COM

Display Ports

1*VGA,1*LVDS/eDP

Expansion Slot

1*Mini PCIE Slot,support WIFI or 4G/BT,1*M.2 Slot,support 5G

Audio

Realtek HDA Codec, with MIC/Line-out and Amplifier

Working Temperature

-20° ~60℃

Power Supply

DC 12V

Factor

161mm*106mm

Specification:

Model	QY-MB-003-S
Storage	1 * SATA3.0 7P Connector 1 * Mini-SATA
Expansion Interface	1 * Mini-PCIe ( Wifi supported with 4G/BT selectable) 1 * M.2 3052 Key-B ( 5G supported)
Ethernet	2 * Intel® 2.5Gbps PCIe Ethernet Controller, RJ45
Audio	Realtek® HDA Codec, with MIC/Line-out and Amplifier 1 * MIC 1 * Line-Out 1 * SPK
COM	4 * RS232 Header 1 * RS232/RS485/RS422 Header 1 * RS232/RS485 Header
USB	7 * USB2.0 Header)
Other Ports	1 * VGA Header 1 * Micro SIM Card Slot 1 * Front Panel Header 1 * GPIO Header
Temperature	Storage: -30~75℃ Operating: -20° ~60℃
BIOS	AMI UEFI BIOS
Power Input	DC 12V
Factor	161mm * 106mm

Marking Instruction:

1	USB Pin Header	21	M-SATA Connector
2	USB Pin Header	22	COM2 Select Jumper
3	COM1 Pin Header	23	COM5/6 Pin Header
4	COM2 Pin Header	24	eDP Signal Pin Header
5	COM3 Pin Header	25	eDP/LVDS Backlight Control Pin Header
6	COM4 Pin Header	26	LVDS Signal Pin Header
7	LAN Pin Header	27	eDP/LVDS VDD Select Jumper
8	LAN Pin Header	28	GPIO Pin Header
9	MIC Pin Header	29	SATA 3.0 Connector
10	LINE OUT Pin Header	30	SATA Power Pin Header
11	Amplifier Pin Header	31	USB Pin Headers
12	COM1 Select Jumper	32	USB Pin Headers
13	M.2 3052 Key-B	33	Front Panel Pin Header
14	SIM Card Slot	34	CMOS battery Holder
15	GPS antenna pedestal	35	CPU FAN Pin Header
16	VGA Pin Headers	36	Buzzer
17	SIM Card Slot	37	eDP/LVDS Signal Select Jumpers
18	Mini PCI-4G_CAN Slot (WIFI/4G/BT)	38	SLOT PCI EXPRESS 300P
19	AUTO SW Select Jumper	39	TOUCH_SEL Select Jumper
20	DC IN Pin Header	40	TOUCH Pin Header
