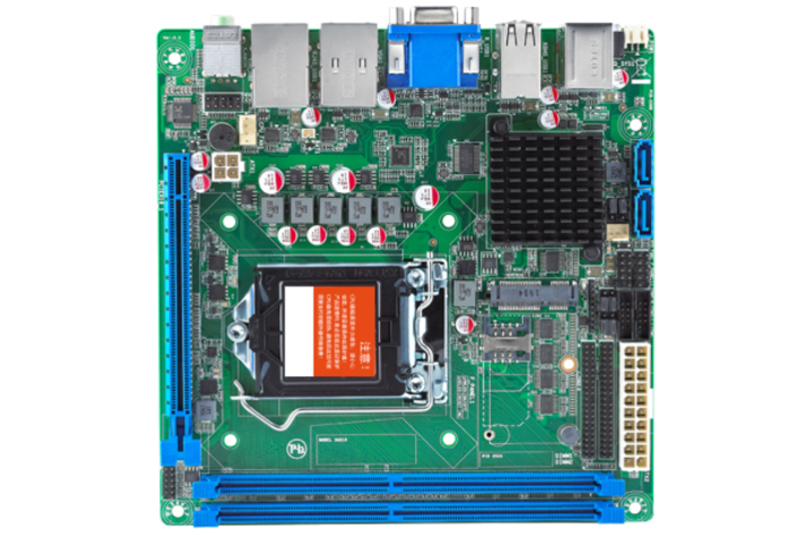

QY-MB-H310-MITX
QY-MB-H310-MITX motherboard is a compact and efficient embedded motherboard designed for industrial and low-power applications. It features Intel Core i3/i5/i7/i9-8/9th,Celeron and Pentium processors, offering reliable performance. It has 2*Gigabit Ethernet port, 10*COM, and 12*USB, 1*HDMI, 1*VGA display ports.
QY-MB-H310-MITX motherboard is widely used in industrial control, network storage, and embedded systems due to its robust design, low power consumption, and versatile connectivity options. It supports operating systems such as Windows 10 and Linux, making it adaptable to various applications.
PRODUCTS FEATURES
CPU:
Intel Core i3/i5/i7-8/9th,Pentium,Celeron
RAM:
2*DDR IIII RAM Slots, up to 32G
Storage:
1*MSATA,2*SATA
Interfaces:
2*LAN, 12*USB, 10*COM, 1*HDMI,1*VGA
Expansion Slot:
1*Mini PCIe slot,support WIFI with 4G,1*PCIE 16x
Introduce
Features
Specification
Marking Instruction
Introduce:
QY-MB-H310-MITX
1. Intel Core i3/i5/i7-8/9th,Pentium,Celeron CPU
2. 2*RJ-45,4*USB 3.1,6*USB 2.0,2*USB 2.0(Header)
2*RS-232+8*RS-232 (Header)
3. 1*HDMI+1*VGA display ports
4. 1*MSATA+2*SATA SSD slots
5. 1*Mini PCIe slot,support WIFI with 4G,1*PCIE 16x
6. Support Windows 10 and Linux system
2. 2*RJ-45,4*USB 3.1,6*USB 2.0,2*USB 2.0(Header)
2*RS-232+8*RS-232 (Header)
3. 1*HDMI+1*VGA display ports
4. 1*MSATA+2*SATA SSD slots
5. 1*Mini PCIe slot,support WIFI with 4G,1*PCIE 16x
6. Support Windows 10 and Linux system
Features:
CPU
Intel Core i3/i5/i7-8/9th,Pentium,Celeron
RAM
Support 2*DDR IIII RAM Slot, Up to 32G
Storage
2*SATA
1*MSATA
Rich I/O interfaces
2*RJ-45,12*USB
10*RS-232(Header)
Display Ports
1*HDMI+1*VGA
Various optional modules
WIFI with 4G module
Working Temperature
-20℃ ~ 60℃
Power input
DC 12V
Specification:
| Model | QY-MB-H310-MITX |
| CPU | Intel Pentium / Celeron / 8-9th Generation Core i3/i5/i7/i9 CPU, LGA1151 Intel H310【1】 chipset, TDP 6W |
| Display | Support dual display simultaneously: 1*HDMI: resolution up to 4096*2160@30Hz 1*VGA: resolution up to 1920*1080@60Hz |
| Memory | Support DDR4 2400 MHz, 2*U-DIMM Slots, Up to 32GB[2] |
| Storage | 2*SATA 3.0 Ports 1*MSATA |
| Expansion | 1*Mini-PCIE slot,support WIFI+4G 1*PCIE 16x |
| Ethernet | 2 * Realtek GBE LAN Chip (10/100/1000 Mbps, RJ45) |
| USB | 6*USB 2.0 (Rear I/O) 4*USB 3.1 (Rear I/O) 2*USB 2.0 (Header) |
| COM | 2 * RS232 (COM1-2, Header) 8 * RS232 (COM3-10, Header) |
| Audio | Realtek ALC662 5.1 Channel HDA Codec Support Line-out/MIC Ports, Line-out/MIC Header |
| Other Ports | 1 * PCI-E X16 slot 1 * Mini PCI-E Slot (WIFI+4G) 8 * GPIO 1 * PS/2 Connector (Keyboard+Mouse 2in1) 1 * SIM Card Slot 1 * Power Button Connector 1 * Front Panel Pin Header 2 * Smart Fan 1 * System+HDD LED 1 * CPU 12V Power Input Connector (ATX 4P) 1 * ATX 20P Power Input Connector |
| System | Windows 10, Linux |
| Temperature | Storage: -20℃ ~ 75℃ Operating：0℃ ~ 60℃ |
| BIOS | AMI UEFI BIOS |
| Factor | Mini-ITX (17cm*17cm) |
Marking Instruction:
| 1 | Front Audio Pin Header | 20 | ATX2 20P Power Input Connector |
| 2 | CPU FAN Connector | 21 | SIM Card Slot |
| 3 | Battery Connector | 22 | SATA 3.0 Connector2 |
| 4 | CPU 12V Power Input Connector | 23 | SATA 3.0 Connector1 |
| 5 | GPIO Pin Header | 24 | Mini PCI-E Slot (WIFI+4G) |
| 6 | COM3-6 Pin Header | 25 | Mini PCI-E Slot (mSATA) |
| 7 | COM7-10 Pin Header | 26 | Power Button Connector |
| 8 | COM1 Pin Header | 27 | System+HDD LED |
| 9 | COM2 Pin Header | 28 | USB 3.0 Dual TYPE-A Connector |
| 10 | COM3-6 Pin1 Signal Select Jumper | 29 | USB 2.0 Quad TYPE-A Connector |
| 11 | Front Panel Pin Header | 30 | HDMI 1.4 TYPE-A Connector |
| 12 | Front USB1 Pin Header | 31 | USB 3.0 Dual TYPE-A Connector |
| 13 | System Fan Connector | 32 | USB 2.0 Dual TYPE-A Connector |
| 14 | CMOS Clear Jumper | 33 | Line-out + MIC 3.5mm Jack |
| 15 | AT or ATX Select Jumper | 34 | PS/2 Connector |
| 16 | PCI-E 16X Slot | 35 | VGA DB15/F Connector |
| 17 | CPU Socket | 36 | LAN Connector1 |
| 18 | DDR4 U-DIMM2 Slot | 37 | LAN Connector2 |
| 19 | DDR4 U-DIMM1 Slot | ||
