QY-MB-H420E-MITX
QY-MB-H420E-MITX motherboard is a compact and efficient embedded motherboard designed for industrial and low-power applications. It features Intel Core i3/i5/i7/i9-10th,Pentium and Celeron processors, offering reliable performance. It has 2*Gigabit Ethernet port, 10*COM, and 12*USB, 1*HDMI, 1*VGA display ports.
QY-MB-H420E-MITX motherboard is widely used in industrial control, network storage, and embedded systems due to its robust design, low power consumption, and versatile connectivity options. It supports operating systems such as Windows 7/10 and Linux, making it adaptable to various applications.
PRODUCTS FEATURES
CPU:
Intel Core i3/i5/i7/i9-10th,Pentium and Celeron
RAM:
2*DDR IIII RAM Slots, up to 32G
Storage:
1*SATA,1*M.2 SATA
Interfaces:
2*LAN, 12*USB, 10*COM, 1*HDMI,1*VGA
Expansion Slot:
1*PCIE 16x Slot, 1*M.2 PCIE Slot, support WIFI+Bluetooth
Introduce
Features
Specification
Marking Instruction
Introduce:
QY-MB-H420E-MITX
1. Intel Core i3/i5/i7/i9-10th,Pentium and Celeron CPU
2. 2*RJ-45,4*USB 3.0,6*USB 2.0,2*USB 2.0(Header)
2 * RS232 (COM1-2, Header)
8 * RS232 (COM3-10, Header)
3. 1*HDMI+1*VGA display ports
4. 1*SATA,1*M.2 SATA SSD slot
5. 1 * PCIE 16x Slot
1 * M.2 PCIE Slot, Support WIFI+Bluetooth
6. Support Windows 10 and Linux system
2. 2*RJ-45,4*USB 3.0,6*USB 2.0,2*USB 2.0(Header)
2 * RS232 (COM1-2, Header)
8 * RS232 (COM3-10, Header)
3. 1*HDMI+1*VGA display ports
4. 1*SATA,1*M.2 SATA SSD slot
5. 1 * PCIE 16x Slot
1 * M.2 PCIE Slot, Support WIFI+Bluetooth
6. Support Windows 10 and Linux system
Features:
CPU
Intel Core i3/i5/i7/i9-10th,Pentium and Celeron CPU
RAM
Support 2*DDR III RAM Slots, Up to 32G
Storage
1*SATA
1*M.2 SATA SSD
Rich I/O interfaces
2*RJ-45,4*USB 3.0,6*USB 2.0,2*USB 2.0(Header)
10* RS232
Display Ports
1*HDMI+1*VGA
Various optional modules
WIFI with Bluetooth
Working Temperature
0℃ ~ 60℃
Power input
DC 12V
Specification:
| Model | QY-MB-H420E-MITX |
| CPU | Intel Pentium / Celeron / 10th Generation Core i3/i5/i7/i9 CPU, LGA1200 Intel H420E chipset, TDP 6W |
| Display | 1*HDMI: resolution up to 1920*1080@60Hz 1*VGA: resolution up to 4096*2160@30Hz |
| Memory | Support DDR4 2133/2400/2666/2933 MHz, 2*U-DIMM Slots, Up to 32GB |
| Storage | 1*SATA 3.0 Ports 1*M.2 Key-M Slot (PCIE 2X/SATA,Default SATA, Support SATA SSD, 2242)[1] |
| Expansion | 1*PCIE 16X 1 * M.2 Key-E Slot (PCIE+USB2.0, Support WIFI+BT, 2230) |
| Ethernet | 2 * Realtek GbE LAN Chip (10/100/1000 Mbps, RJ45) |

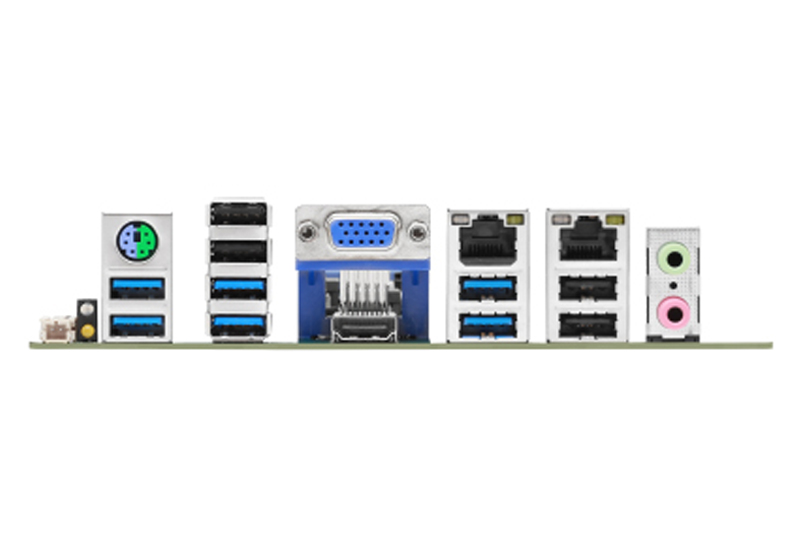

| USB | 6*USB 2.0 (Rear I/O) 4*USB 3.0 (Rear I/O) 2*USB 2.0 (Header) |
| COM | 10*RS-232 |
| Audio | Realtek HDA Audio Codec 1 * Front Audio Header (Line Out +MIC) 1 * Line-Out + MIC 3.5mm Jack (Line-In Optional)[2] |
| Other Ports | 8 * GPIO 1 * PS/2 Connector (Keyboard +Mouse 2in1) 1 * Power Button Wafer 1 * Front Panel Header 1 * CPU FAN Wafer 1 * System FAN Wafer 1 * System +HDD LED 1 * Debug Header |
| System | Windows 10, Linux |
| Temperature | Storage: -20℃ ~ 75℃ Operating：0℃ ~ 60℃ |
| BIOS | AMI UEFI BIOS |
| Factor | Mini-ITX (17cm*17cm) |
Marking Instruction:
| 1 | Front Audio Pin Header | 20 | M.2 Key-M Slot (PCIE 2x/SATA, Default SATA, Support SATA SSD, 2242, BOM optional PCIE 2x) |
| 2 | CPU FAN Connector | 21 | ATX 20P Power Input Connector |
| 3 | COM7-10 Header | 22 | SATA3.0 7P Connector |
| 4 | COM3-6 Header | 23 | System State LED |
| 5 | COM1 Header | 24 | Dual USB3.0 TYPE-A Connector |
| 6 | COM2 Header | 25 | PS/2 Connector (Keyboard & Mouse) |
| 7 | Front Panel Header | 26 | Dual USB3.0 + Dual USB2.0 TYPE-A Connector |
| 8 | GPIO Header | 27 | HDMI TYPE-A Connector |
| 9 | Front USB2.0 Header | 28 | VGA DB15/F Connector |
| 10 | Debug Header | 29 | Dual USB3.0 TYPE-A Connector |
| 11 | CMOS Clear Jumper | 30 | GBE LAN RJ45 Connector1 |
| 12 | AT or ATX Select Jumper | 31 | Dual USB2.0 TYPE-A Connector |
| 13 | System FAN Wafer | 32 | GBE LAN RJ45 Connector1 |
| 14 | Power Switch Wafer | 33 | Line-Out + MIC 3.5mm Jack |
| 15 | ATX 4P CPU Power Input Connector | ||
| 16 | PCI-E 16X Slot | ||
| 17 | DDR4 CHB U-DIMM Slot2 | ||
| 18 | DDR4 CHA U-DIMM Slot1 | ||
| 19 | M.2 Key-E Slot (PCIE+USB2.0, Support WIFI+BT, 2230) | ||
