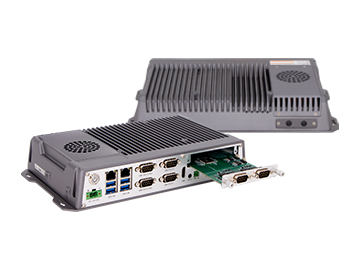

QY-B8000

B8000 embedded fanless industrial mini pc supports multiple installation methods, integrated INTEL 4/6/7/8/9/10/11/12/13th generation processors optional and it has strong scalability. It supports WINDOWS/LINUX operating system, onboard J1900/J6412/ 4/6/7/8/10th generation Core i3/i5/i7, supports 4G/5G Internet access function, meet communication requirements (need to add a module separately), supports Wifi, Bluetooth dual communication module (need to add a module separately), DC 12V-36V/DC 9-36V power input optional.

PRODUCTS FEATURES

CPU: Celeron and Core 4/6/7/8/10th-i3/i5/i7

RAM: 1*DDR 3 RAM slot, up to 8GB/1*DDR 4 RAM slot, up to 16GB

Storage: 1*SATA SSD slot, 1*mSATA SSD slot

Interfaces: 2*LAN, 4*USB, 6*COM,1*HDMI

Expansion Slot: 1*Mini PCIe slot, support 4G and WIFI module

Send Email Download PDF

Introduce

Features

Specification

Dimension

Introduce:

Industrial Mini PC QY-B8000

1. Industrial-Grade Embedded Fanless Mini PC

2. Intel Celeron and Core 4 / 6 / 7 / 8 / 10t h-i3 / i5 / i7 CPU
3. 2*LAN, 4*USB, 6*COM, 1*HDMI
4. Anti-Static, Anti-Pulse, Anti-Surge, Anti-Radiation
5. -30℃~70℃ Temperature Can Keep 24/7 Work Stably
6. 1*Mini PCIE Expansion Slot, Support 4G and WIFI Module
7. DC 9-36V Power Input with Overvoltage Protection
8. 1*Multifunctional Expansion Daughter Card

Features:

CPU

Celeron and Core 4/6/7/8/10th-i3/i5/i7

Fanless Design

Aluminum alloy material, better heat dissipation effect

High Capacity RAM and SSD

1*DDR 3 RAM slot, up to 8GB/1*DDR 4 RAM slot, up to 16GB,1*Mini PCIe slot for WIFI and 4G module

Rich I/O interfaces

2*LAN, 4*USB, 6*COM, 1*HDMI,1*Expansion Card Slot

Various optional modules

WIFI / GSM module

Power

DC 9-36V

-30℃ to 70℃ run temperature

24/7 uninterrupted and stable operation

Various installation methods

Desktop/Embedded/Wall Mounted

Specification:

Specification-1：

Model	QY-B8000
CPU	J1900
Memory	1*DDR III RAM Slot, Up to 8GB
Storage	1MSATA SSD 1SATA SSD
Display	1HDMI: Resolution up to 40902160@60Hz
Expansion	1*Mini PCIE Slot, Support 4G and WIFI module
Ethernet	2*Intel i211V LAN chip (10 / 100 / 1000 Mbps, RJ-45)
USB	3USB 2.0+1USB 3.0
COM	2RS-232 / 422 / 485 (DB9 type） 4RS-232 (DB9 type)
Daughter card	Support expand I/O interfaces card and functional slots card

Specification-2：

Model	QY-B8000
CPU	i3-4010U / i5-4260U / i7-4650U
Memory	2*DDR III RAM Slot, Up to 16GB
Storage	1MSATA SSD 1SATA SSD
Display	1HDMI: Resolution up to 40902160@60Hz
Expansion	1*Mini PCIE Slot, Support 4G and WIFI module
Ethernet	2*Intel i255V LAN chip (10 / 100 / 1000 /2500 Mbps, RJ-45)
USB	4*USB 3.0
COM	2RS-232 / 422 / 485 (DB9 type） 4RS-232 (DB9 type)
Daughter card	Support expand I/O interfaces card and functional slots card

Specification-3：

Model	QY-B8000
CPU	J6412 i3: 7100U i5: 6200U / 7200U / 8260U / 10210U i7: 7500U / 10610U
Memory	2*DDR IIII RAM Slot, Up to 32GB
Storage	1MSATA SSD 1SATA SSD (Support RAID 1)
Display	1HDMI: Resolution up to 40902160@60Hz
Expansion	1*Mini PCIE Slot, Support 4G and WIFI module
Ethernet	2*Intel i255V LAN chip (10 / 100 / 1000 /2500 Mbps, RJ-45)
USB	3USB 2.0+1USB 3.0
COM	2RS-232 / 422 / 485 (DB9 type） 4RS-232 (DB9 type)
Daughter card	Support expand I/O interfaces card and functional slots card

Ordering Information：

Model	CPU	LAN	USB	COM	Display	RAM	SSD	Expansion	Power Input
B8000	J1900	2	4	6	1*HDMI	1*DDR 3	1MSATA 1SATA	1*Mini PCIE	DC 9-36V
	4th					2*DDR 3
	J6412					2*DDR 4
	6th/7th 8th/10th

Related products

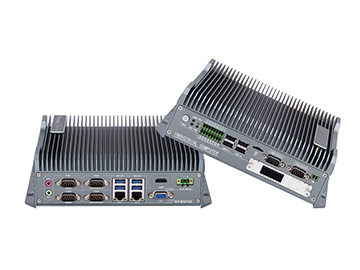

QY-B5700-C
