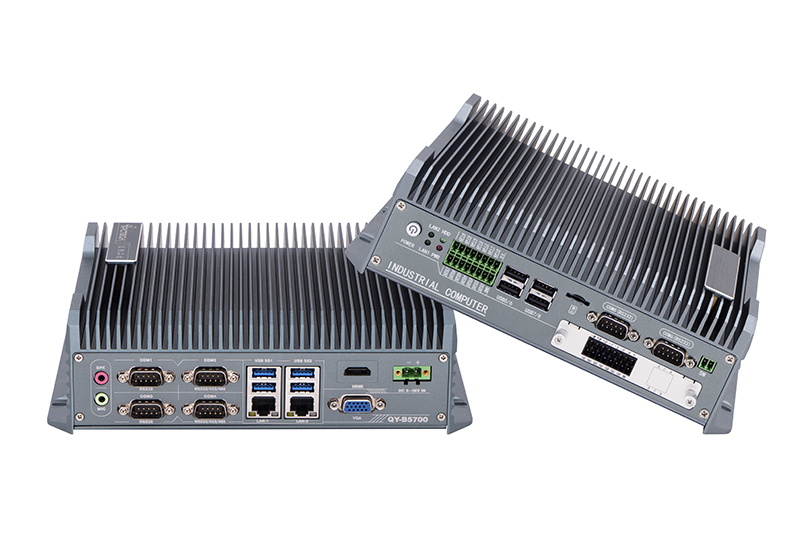

QY-B5700-C
B5700-C embedded fanless industrial mini pc adopts wide voltage design, overvoltage and overcurrent protection, and multiple processor models are optional. It has 1*multifuctional expansion card slot. Support WINDOWS/LINUX operating system, onboard Celeron J6412 and I3/I5/I7 7-12 generation processors, support 4G Internet access function, meet communication requirements (need to select module separately), support Wifi and Bluetooth dual communication (need to select module separately), support 6 serial ports 4*RS-232/2*RS-232/422/485 to meet the use of basic peripherals.
PRODUCTS FEATURES
CPU:
J6412,i3-7100U / 10110U, i5-7200U / 7267U / 8260U / 10210U / 1135G7 / 1235U, i7-7500U / 10610U / 10710U / 1165G7 / 1255U
RAM:
1*DDR 4 RAM slot, up to 16/32GB
Storage:
1*mSATA SSD slot
Interfaces:
2*LAN, 8*USB, 6*COM,1*HDMI, 1*VGA
Expansion Slot:
2*Mini PCIe slots, support 4G and WIFI module, 1*Expansion Card slot
Introduce
Features
Specification
Dimension
Introduce:

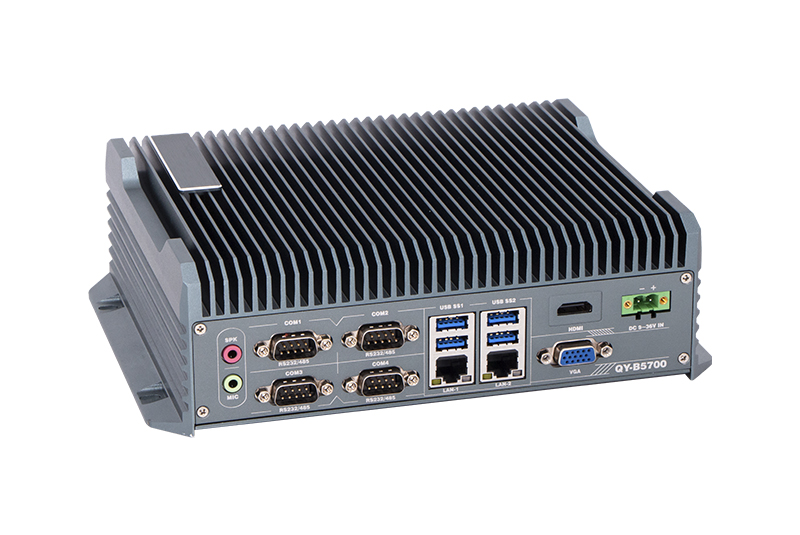

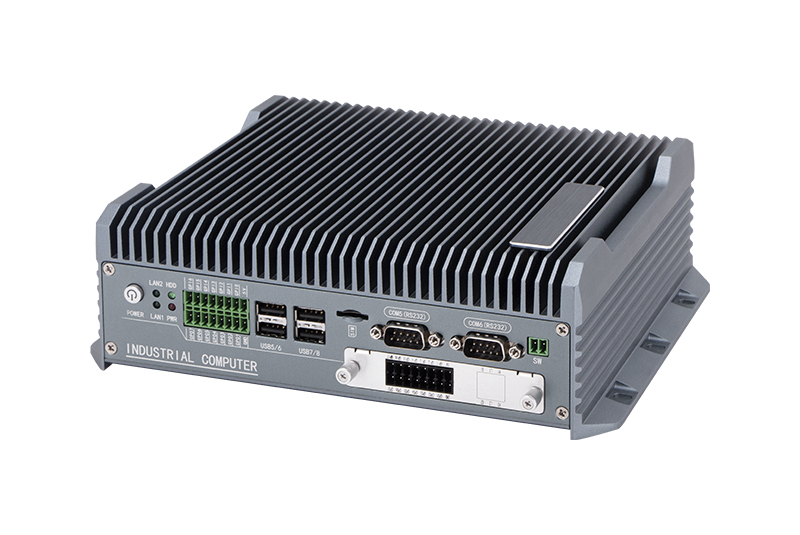

Industrial Mini PC QY-B5700-C
1.2.Intel Celeron and Core 7/8/10/11/12th-i3 / i5 / i7 CPU
2. 2*intel i210V LAN chip,8*USB ports
3. HDMI+VGA double display ports
4. 4*RS-232+2*RS-485 / 422 / 232 COM ports
5.2*Mini-PCIE for expand 4G and WIFI module,1*Expansion Card slot
6. DC 9-36V power input, Surge / pulse protection
7. Support Win 7 / 10 / 11 and Linux system
Support 3G, 4G, Wifi, Bluetooth dual communication modules.
Engineered for exceptional reliability in the most demanding environments, this product offers extensive customization options. It is available in ruggedized variants that are waterproof, explosion-proof, dustproof, and capable of high-temperature operation, ensuring unwavering performance where it matters most.
Engineered for exceptional reliability in the most demanding environments, this product offers extensive customization options. It is available in ruggedized variants that are waterproof, explosion-proof, dustproof, and capable of high-temperature operation, ensuring unwavering performance where it matters most.
Features:
CPU
Celeron J6412, Core i3,i5,i7-7/8/10/11/12th
Fanless Design
Aluminum alloy material,
better heat dissipation effect
High Capacity RAM and SSD
1*DDR 4 RAM slot, up to 16/32GB
Rich I/O interfaces
2*LAN, 8*USB, 6*COM, 1*HDMI, 1*VGA
Various optional modules
WIFI / GSM module, 1*Expansion Card Slot
Power
DC 9-36V
-30℃ to 70℃ run temperature
24/7 uninterrupted and stable operation
Various installation methods
Desktop/Embedded/Wall Mounted
Specification:
1.Mother Board Specification：
Notes:
[1]: The maximum memory capacity and the maximum capacity per strip supported by this motherboard depend on the CPU.
[2]: The maximum resolution and frame rate of the display interface output depends on the CPU.
2.Device Specification:
3.Expansion Card Specification:
4.Ordering Information:
| Model | QY-B5700-C |
| CPU | J6412 i3-7100U / 10110U i5-7200U / 7267U / 8260U / 10210U / 1135G7 / 1235U i7-7500U / 10610U / 10710U / 1165G7 / 1255U |
| Memory[1] | 1*DDR IIII RAM Slot, Up to 16GB |
| Storage | 1*MSATA SSD Slot |
| Display[2] | 1*HDMI: Resolution up to 4096*2304@24Hz 1*VGA: Resolution up to 1920*1200@60Hz |
| Expansion | 2*Mini PCIE Slots, Support 4G and WIFI module |
| Ethernet | 2*Intel i210V LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) |
| USB | 4*USB 3.0 (Type-A) 4*USB 2.0 (Type-A) |
| COM | 2*RS-232 / 422 / 485 (DB9 Type) 4*RS-232 (DB9 Type) |
| GPIO | 14 ports GPIO (7*GPI+7*GPO, Phoenix Terminal Type) |
| Audio | 1*Line-In+1*Line-Out |
Notes:
[1]: The maximum memory capacity and the maximum capacity per strip supported by this motherboard depend on the CPU.
[2]: The maximum resolution and frame rate of the display interface output depends on the CPU.
2.Device Specification:
| Watch Dog | Support |
| Power Input | DC 9-36V With Overvoltage Protection |
| Support Auto-Start | |
| 3 Pin Phoenix Terminal Type DC Plug | |
| Working Temperature | -30℃~70℃, Support 24/7 Working |
| Structure | Fully Enclosed Aluminum Alloy Material |
| Heat Dissipation | Fanless Design, Conduction Heat Dissipation |
| Installation | Desktop / Embedded / Wall Mount |
| Size | 234mm*175mm*65mm |
| System | Windows and Linux |
3.Expansion Card Specification:
| COM Port-2 | 2*RS-232 / 485 (DB9 type) |
| COM Port-6 | 4*RS-232 / 485+2*RS-232 (Phoenix terminal type) |
| Ethernet Port-2 | 2*Intel i211V LAN Chip (RJ-45 type) |
| Ethernet Port-4 | 4*Intel i211V LAN Chip, Support POE function (RJ-45 type) |
| USB Port-4 | 4*USB 3.0 (Type-A) |
| GPIO Port-14 | 14 ports GPIO, 7*GPI+7*GPO, 0-3.3V (Phoenix terminal type) |
| DIDO Port-16 | 16 ports DIDO, 8*DI+8*DO, 24V (Phoenix terminal type) Comes with 4*RS-485 COM ports (Phoenix terminal type) |
| Mini PCIE Slot-2 | 2*Mini PCIE slots, Support 4G and WIFI module |
| M.2 Slot-1 | 1*M.2 Key-B slot, Support 5G module |
| M.2 NVME SSD Slot-1 | 1*M.2 NVME SSD slot |
| SATA SSD Slot-1 | 1*SATA 3.0 SSD Slot, Support RAID 1 |
| CAN Port-2 | 2*CAN interfaces (Phoenix terminal type) |
| UPS battery | 1.2AH or 4.8AH |
4.Ordering Information:
| Model | CPU | LAN | USB | COM | Display | RAM | SSD | Expansion | Power |
| QY-B5700-C | J6412 6th/7th |
2 | 8 | 2*RS-232/422/485 4*RS-232 |
1*HDMI 1*VGA |
1*DDR 4 Up to 16GB |
1*MSATA | 2*Mini PCIE | DC 9-36V |
| 8th / 10th 11th / 12th |
1*DDR 4 Up to 32GB |
