QY-U1000
PRODUCTS FEATURES
CPU 1037U/1900/J4125 Intel i3-i5-i7/2th~14th
Motherboard chip Intel B75/H81/H110H310C/ Q170/Q270/H470Q470/ H610/Q670
Storage 2*SATA3.0 + 1*MINI-SATA
Memory DDR3/4/5
Power ATX Power Module
Industrial
Features
Specification
Dimensions
Industrial:

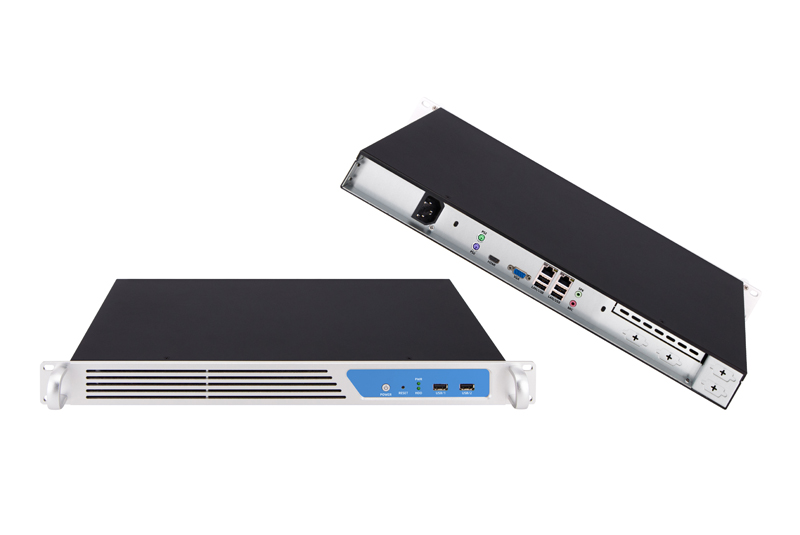

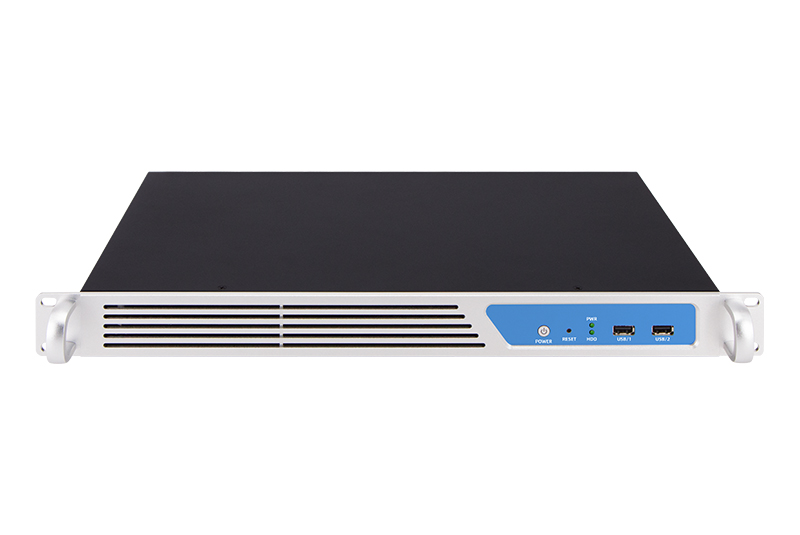

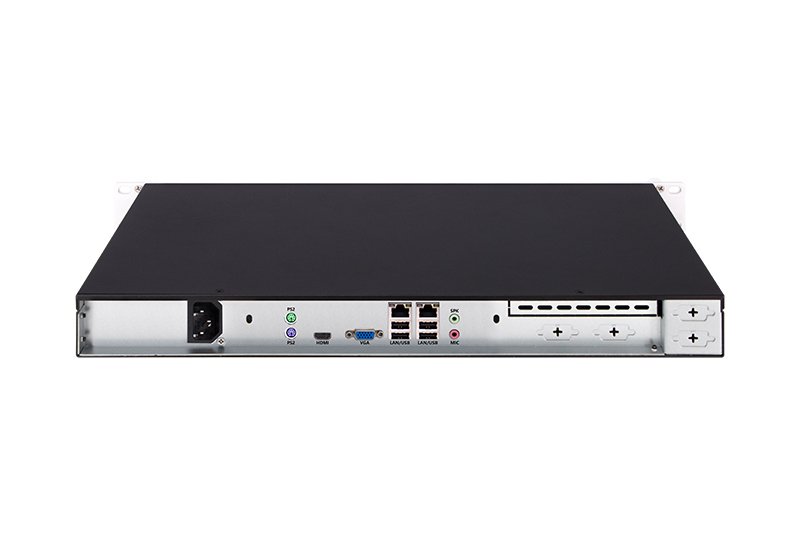

Industrial Computer-1U
1. Rugged DIMM memory slot
Solve the problem of poor memory contact caused by industrial computers in vibration environment and transportation.

2. Rugged MSATA electronic disk slot
Avoid the failure of mechanical hard disks in industrial computers under vibration, high temperature and illegal power off.

3. Diversified power supply matching
Multi-way power supply interface can independently power multiple function cards and provide multiple specifications of power supply options.

4. Sturdy box structure
The box adopts galvanized steel plate structure, double ball bearing fan and micro positive pressure air circulation design.

5. Software encryption dog design
The product provides a vertical USB interface inside, which is convenient for customers to install software encryption dogs and prevent accidental loss

6. Flexible expansion slots
Designed with 7 PCI and PCIE bus function cards inside.

7. Expandable serial port
The chassis reserves multiple expansion serial ports to meet more expansion needs.

8. Remote power on and off
The terminal for PS-0N remote power on and off is reserved, which is convenient for customers to add operation buttons on the cabinet panel.
Features:
Motherboard
Support ATX / Micro-ATX / Mini-ITX Mother Board
Motherboard Chip
Intel B75/H81/H110/H310C/Q170/Q270/H470/Q470/H610/Q670
CPU
Intel 2~3th-i3/i5/i7 CPU
Flexible expansion slots
1*Mini PCIE slot, support 4G and WIFI module 1*SIM slot
RAM
DDR3/4/5
Storage
2*SATA3.0 1*MINI-SATA
Rich I/O interfaces
6*USB 1*HDMI+1*VGA 2~6*SFP 1-6COMkexuan
Temperature
Storage:-40℃~80℃ Operating:-20~70℃
Specification:
Dimensions:
Application:
