QY-P8101

              The QY-P8101 is an industrial-grade rugged all-in-one computer with a fanless design. Capacitive or resistive touch options are available. This series of products has anti-interference and strong scalability to meet the requirements of harsh industrial environments. At the same time, the fuselage is made of aluminum alloy, which can keep the equipment working 24/7 in the environment of -20°C to 60°C.

                PRODUCTS FEATURES


                        Model:
                        QY-P8101


                        Screen:
                        10.1 inch LED screen, 1280*800 Resolution


                        CPU:
                        Intel Celeron and Core N95/N100/4/6/7/8/10th-i3/i5/i7


                        I/O interfaces:
                        2*RJ-45, 4*USB, 6*COM Ports


                        System:
                        Windows 7 / 10 / 11 and Linux



                Introduction

                Features

                Specification

                Dimension


                Introduction:

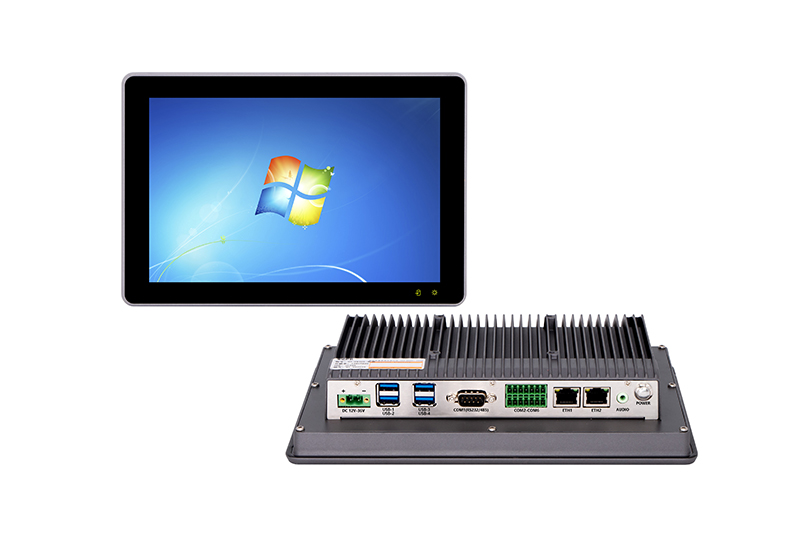

                  10.1 inch Industrial Panel PC

                  1.Industrial-Grade Embedded Fanless design Panel PC
2.10.1 inch LED Screen, 1280*800 Resolution
3.Intel Celeron and Core N95/N100/4/6/7/8/10th-i3 / i5 / i7 CPU
4.2*LAN, 4*USB, 6*COM
5.2*Mini PCIE Expansion Slots, Support 4G and WIFI Module
6.-20℃~60℃ Temperature Can Keep 24/7 Work Stably
7.Power Supply:DC 12V

              2.10.1 inch LED Screen, 1280*800 Resolution
3.Intel Celeron and Core N95/N100/4/6/7/8/10th-i3 / i5 / i7 CPU
4.2*LAN, 4*USB, 6*COM
5.2*Mini PCIE Expansion Slots, Support 4G and WIFI Module
6.-20℃~60℃ Temperature Can Keep 24/7 Work Stably
7.Power Supply:DC 12V


                Features:



                        Celeron and Core CPU

                        N95/N100/ J1900/J4125/J6412 and 4/6/7/8/10th-i3/i5/i7


                        10.1 inch LED screen

                        Resolution: 1280*800, 16:9 size


                        Touch Screen

                        Capacitive or Resistive


                        Rich l/O interfaces

                        2*RJ-45, 4*USB, 6*COM, 1*Audio


                        Expansion Slots

                        2*Mini PCIE slots for 4G and WIFI module


                        Installation

                        Desktop / Embedded / Wall Mounted


                        Fanless Design

                        Fully Enclosed Aluminum Alloy Material


                        Working Temperature

                        -20℃ to 60℃ working 24/7 stably

                Specification:


                1-1.Mother Board Specification:


1-2.Mother Board Specification:


2.LED Screen Specification


3.Device Specification:


4.Ordering Information:



            | Model | QY-P8101 |
| CPU | N95/N100/J1900 / i5-4260U |
| Memory | 1*DDR III RAM Slot, Up to 8GB |
| Storage | 1*MSATA SSD |
| Expansion | 2*Mini PCIE Slots, Support 4G and WIFI module |
| Ethernet | 2*Intel i210V LAN chip (10 / 100 / 1000 Mbps, RJ-45) |
| USB | 2*USB 3.0 (Type-A) 2*USB 2.0 (Type-A) |
| COM | 1*RS-232 / 422 / 485 (DB9 type) 1*RS-232 / 485 (Phoenix terminal type) 4*RS-232 (Phoenix terminal type) |
| Audio | 1*Line-OUT |
1-2.Mother Board Specification:
| Model | QY-P8101 |
| CPU | N95/N100/ J4125 / J6412 i3: 7100U i5: 6200U / 7200U / 8260U / 10210U i7: 7500U / 10610U |
| Memory[1] | 1*DDR IIII RAM Slot, Up to 8GB |
| Storage | 1*MSATA SSD |
| Expansion | 2*Mini PCIE Slots, Support 4G and WIFI module |
| Ethernet | 2*Intel i210V LAN chip (10 / 100 / 1000 Mbps, RJ-45) |
| USB | 4*USB 3.0 (Type-A) |
| COM | 1*RS-232 / 422 / 485 (DB9 type) 1*RS-232 / 485 (Phoenix terminal type) 4*RS-232 (Phoenix terminal type) |
| Audio | 1*Line-OUT |
2.LED Screen Specification
| Screen Size | 10.1 inch TFT LED Screen, 16:9 Size | |
| Resolution | 1280*800 | |
| Brightness | 350nits | |
| Support optional 500 / 700 /100 nits | ||
| Contrast | 800:1 | |
| Largest Colorful | 16M | |
| Touch Screen Type | Capacitive | Resistive |
| Light Transmittance | More than 95% | More than 95% |
| Touch Life | 50 million times | 35 million times |
| Response Time | <5ms | <5ms |
| Touch Hardness | 6 Mohs | |
3.Device Specification:
| BIOS | AMI UEFI BIOS (Support Watch Dog Timer) |
| Power Input | DC 12V Support optional DC 9-36V wide voltage power input |
| Support AT / ATX | |
| 2*Pin Phoenix Terminal DC Plug | |
| Working Temperature | -30℃~70℃, Support 24/7 Working |
| Size | 258mm*172mm*53.5mm |
| Structure | Fully Enclosed Aluminum Alloy Material |
| Heat dissipation | Fanless Design, Conduction Heat Dissipation |
| Installation | Desktop / Embedded / Wall-Mounted |
| System | Windows 7 / 10 / 11 and Linux |
4.Ordering Information:
| Model | CPU | LAN | USB | COM | Display | RAM | SSD | Expansion | Power Input |
| P8101 | j1900 | 2 | 4 | 6 | None | 1*DDR 3 | 1*MSATA | 2*Mini PCIE | DC 12V |
| 4th | |||||||||
| J4125/J6412 | 1*DDR 4 | ||||||||
| 6th/7th 8th/10th |
                Dimension:
