QY-P6150-Stainless Steel Full IP66
The QY-P6000 stainless steel series industrial flat-panel PC is designed for tough industrial environments. It features a stainless steel case that’s waterproof, corrosion-resistant, and resistant to chemicals, detergents, and disinfectants. It comes with an integrated industrial touchscreen and stainless steel body. A polymer waterproof gasket ensures a fully sealed enclosure. The industrial-grade touchscreen is available in sizes from 15 to 21.5 inches.
PRODUCTS FEATURES
CPU:
J1900 / J6412 / N95 / N100
Resolution:
1024*768
OS:
Support Windows / Linux operating system
RAM/ROM:
1*DDR III Slot, Up to 8GB(1*MSATA SSD) / 2*DDR IIII Slots, Up to 32GB(1*MSATA SSD) / 1*DDR IIII Slots, Up to 16GB(1*M.2 NVME SSD)
Interface:
1*HDMI,1*VGA,2*LAN,4*USB,6*COM
Introduce:
Features
Specification
Introduce::

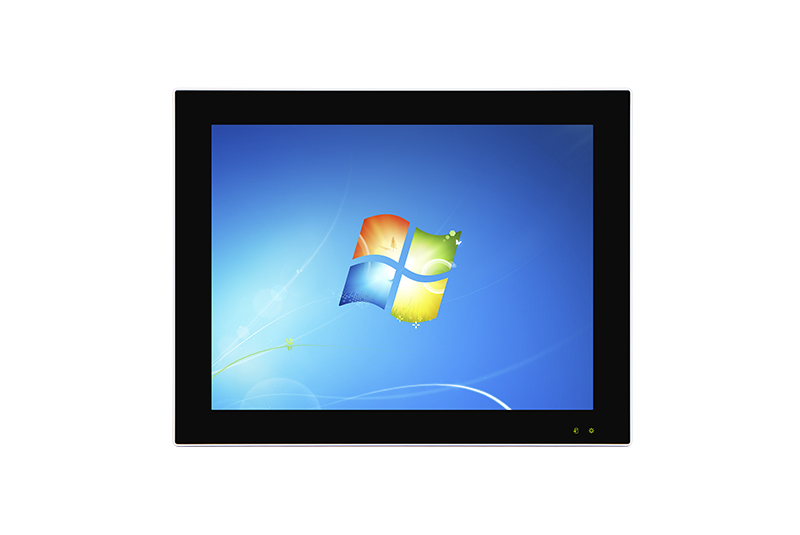

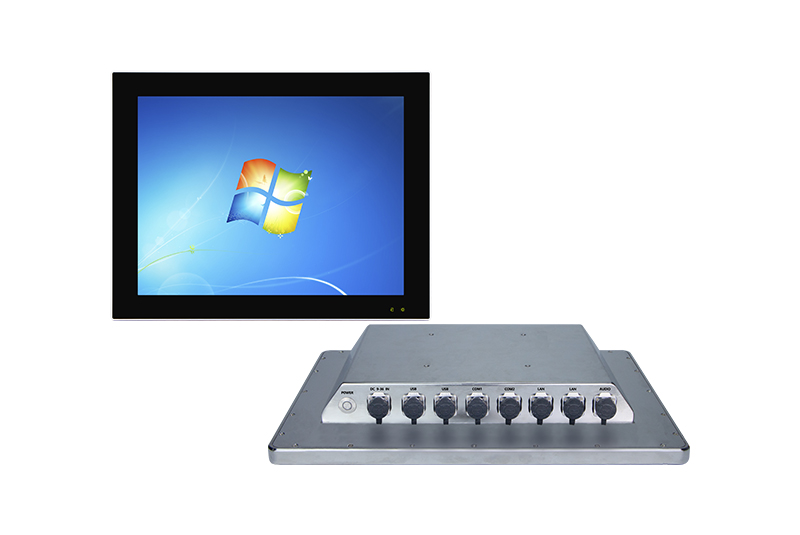

15 Inch Stainless Steel Industrial Panel PC
IPCTECH offers a full range of industrial touch panel PCs. In addition to our standard products, we also develop new ones like this panel PC, which features a more robust back cover and gives customers a lot of flexibility when it comes to customization. We support all kinds of custom projects, including storage capacity, interfaces, mounting options, and more. Every product goes through strict quality testing throughout the development process. These tablets are widely used in automation, kiosks, retail, digital signage, ships, vehicles, and medical fields.
Features:
CPU：J1900 / J6412 / N95 / N1000
Support Windows / Linux operating system
Front panel IP66 water proof
Touch hardness: 6 Mohs
Screen size:15 inch LED screen
Support capacitive and resistive touch, Resolution: 1024*768
Rich I/O interfaces

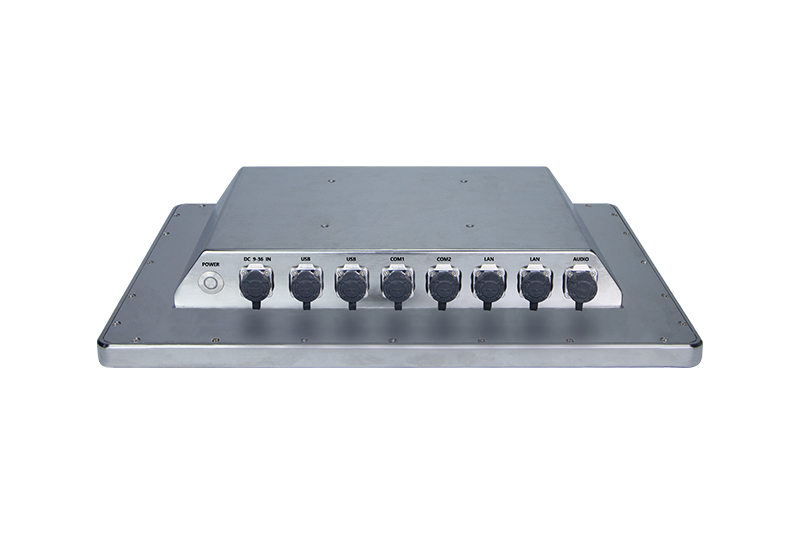

2*RJ-45,4*USB,6*COM,1*HDMI,1*VGA
Installation method
Desktop / Wall Mount
Multiple expansion interfaces
Supports selecting the number of interfaces as needed
Fanless design
Made of stainless steel, it cools down even better
Working Temperature
-20℃~60℃, Support 24/7 Working
Specification:
| Model | QY-P6150-Stainless Stell | ||
| CPU | J1900 | J6412 | N95 / N100 |
| Memory | 1*DDR III Slot, Up to 8GB | 2*DDR IIII Slots, Up to 32GB | 1*DDR IIII Slots, Up to 16GB |
| Storage | 1*MSATA SSD | 1*MSATA SSD | 1*M.2 NVME SSD |
| Display[1] | 1*HDMI: Resolution up to 4096*2160@60Hz 1*VGA: Resolution up to 1920*1200@60Hz |
||
| Expansion | 1*Mini PCIE, Support 4G / WIFI | 2*Mini PCIE, Support 4G / WIFI | 2*M.2, Support 4G/5G and WIFI |
| Ethernet[2] | Max 2*RTL8211F LAN Chip (10 / 100 / 1000 Mbps, M12 Type) | ||
| USB[3] | Max 4*USB (M12 Type) | ||
| COM[4] | Max 5*RS-232+1*RS-232 / 485 (M12 type) | ||
