QY-P5215-HY
The QY-P5000-HY series industrial tablet is a medical-grade, high-performance all-in-one machine designed specifically for healthcare environments. With its flexible modular design, it offers a range of screen sizes from 15.6 inches to 21.5 inches and supports widescreen setups. This versatile tablet can be customized to meet different scenarios and application needs.
PRODUCTS FEATURES
Touch type/Resolution
Capacitive touch screen / 1920*1080
CPU
Intel Celeron and Core J1900/J6412/N95/N100 - 4/6/7/8/10/11/12/13th-i3/i5/i7 CPU
Memory
DDR3/DDR4/DDR5（Check Specification for details）
Storage
Msata, M.2 Nvme, Sata(Check Specification for details）
Interfaces
2*LAN, 4*USB, 2*COM, 1*HDMI+1*VGA
Introduce
Features
Specification
Dimensions
Introduce:

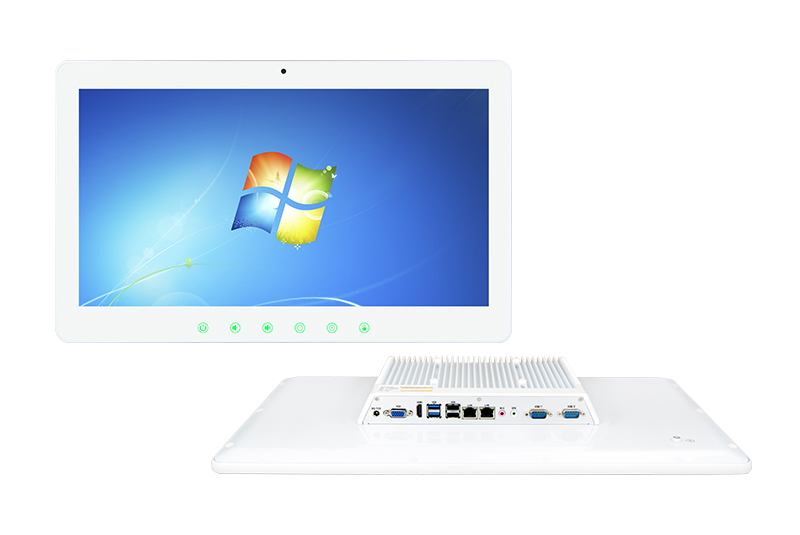

21.5 inch Industrial Panel PC
IPCTECH offers a full range of medical tablets. In addition to our standard products, we also develop new products like this medical tablet, which comes with physical buttons and a built-in camera, giving customers flexibility in customization. We support various customization options, including storage capacity, interfaces, mounting choices, and more. Each product undergoes strict quality testing to ensure reliable performance. Our medical tablets are widely used in wards, examination rooms, medical consultations, and other healthcare settings.
Features:
CPU
Intel Celeron and Core J1900/J6412/N95/N100 /4/6/7/8/10/11/12/13th-i3/i5/i7 CPU
System: Windows/Linux
Front panel IP65 water proof
Support Capacitive touch.
Screen size

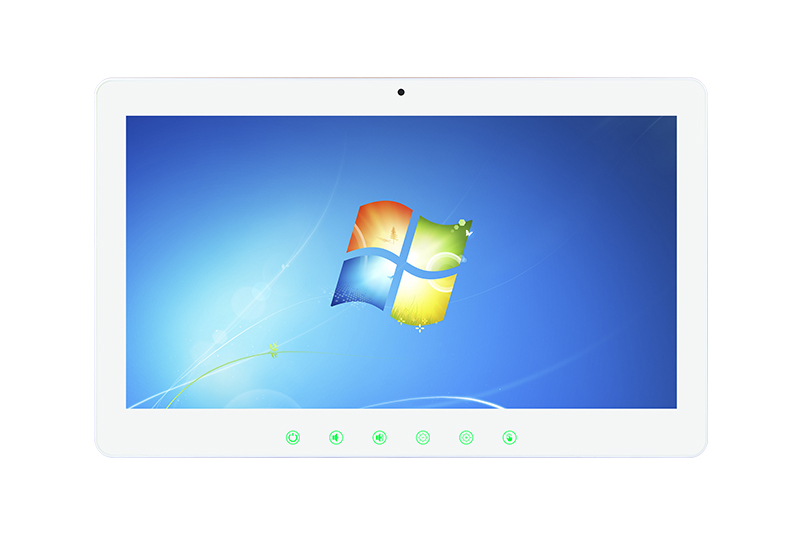

21.5 inch TFT-LCD Screen, 16:9 Size, Resolution：1920*1080

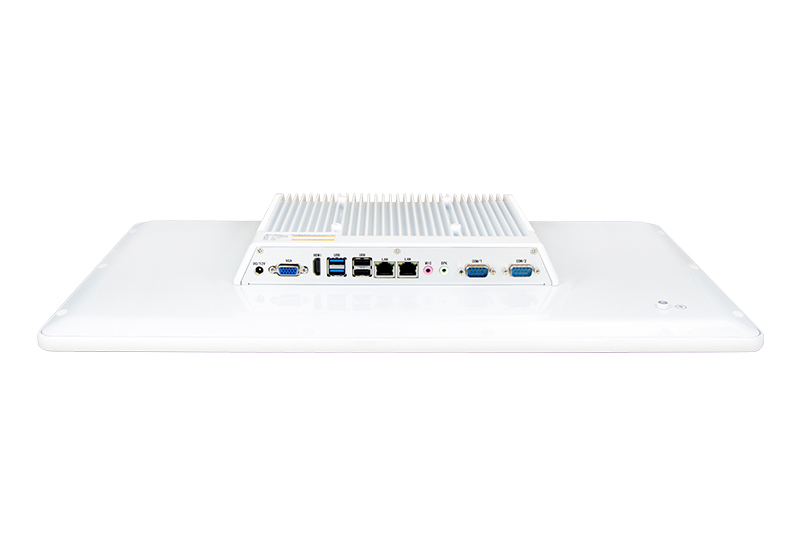

Rich I/O interfaces
2*RJ-45
4*USB
2*COM
1*HDMI+1*VGA
Installation
Wall Mount
Power input
DC 12V
Heat dissipation
Fanless Design, Aluminum alloy material, conduction Heat Dissipation, better heat dissipation effect
Working Temperature
-20℃~60℃, Support 24/7 Working
Specification:
| Model | QY-P5215-HY | ||
| CPU | J1900 i3-4010U i5-4260U i7-4650U |
J6412 i3-7100U / 8130U / 10110U i5-7200U / 8250U / 10310U i7-7500U / 8550U / 10710U |
N95 / N100 i3-1115G4 / 1215U / 1315U i5-1135G7 / 1235U / 1335U i7-1195G7 / 1255U / 1270P / 1355U |
| Memory | 2*DDR III RAM Slots Up to 16GB |
2*DDR IIII RAM Slots Up to 32GB |
2*DDR IIII RAM Slots Up to 64GB |
| Storage | 1*MSATA SSD Slot | 1*M.2 NVME SSD Slot | |
| 1*SATA SSD Slot | |||
| Display | 1*HDMI: Resolution up to 4096*2106@60Hz 1*VGA: Resolution up to 1920*1200@60Hz |
||
| Expansion | 2*Mini PCIE Slots Support 4G and WIFI module |
1*M.2 and 1*Mini PCIE Slots Support 4G/5G and WIFI module |
2*M.2 Slots Support 4G/5G and WIFI module |
| Ethernet | 2*RTL8211F LAN Chip (10 / 100 / 1000 Mbps, RJ-45 Type) | ||
| USB | 4*USB 3.0 (Type-A) | ||
| COM | 1*RS-232+1*RS-485 / 232 (DB9 Type) | ||
| Audio | 1*MIC+1*SPK | ||
Dimensions:
